Ibex GRAVITY wheelset - Shimano HG

Universal MTB/Enduro/Gravity all-black 29" wheelset with 32-hole spokes, precisely handmade to the latest standards and meeting the strictest criteria. The wheels withstood an entire season of tireless downhill racing and training in the hands of the SK Grafobal / Top on Trail DH team. From early spring to late autumn, each rider relied on a single set of wheels - without the need for replacement.

RIMS

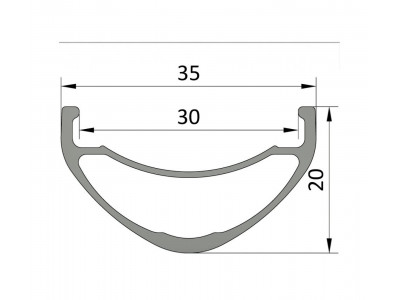

IBEX 30 - size: 622 x 30

This rim has been tested at the Czech DH Cup, IXS Downhill Cup and our own IBEX Cup in the Czech Republic, Slovakia and Poland. It is built to meet the brutal demands of elite level racing - from factory riders to registered individuals.

TUBELESS READY – with tubeless tape, the wheels are ready for use with tubeless tires in the optimal width from 2.30" to 2.70".

GOATed Alloy - a special durable alloy with an optimized GREATEST OF ALL TIME (GOAT) composition, which is 88% stronger than 6063 T6, or 47% stronger in tensile strength than 6061 T6.

SLEEVE JOINT - rims are manufactured using the proven SLEEVE JOINT coupling technology (joined using a shaped aluminum insert), with the joint additionally reinforced with a SPOT WELD spot weld.

PINCH FLAT SAFE HOOK - the rim profile with PINCH FLAT technology is designed to maximize the contact area between the rim and the tire at the critical interface and prevent unwanted cutting of the tire by the rim during a hard impact of the wheel with very low tire pressure.

RIM LOCK - the rim drilling for the spoke is conical, so the nipple is not fixed and can rotate/move from its axis at an angle of up to 6°, which prevents the spokes from bending and helps reduce the tension between the spoke and the rim.

HUB

Disc hubs RX 3056 + RX 3055 on industrial bearings, for curved spokes and with 6-hole disc mounting.

BOOST configuration 15 x 110 mm + 12 x 148 mm

Shimano HG rear hub with aluminum nut

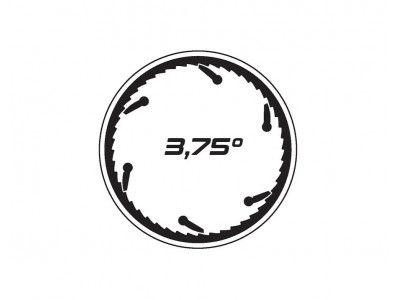

The 6-latch nut system and 48-tooth ratchet ring in the hub create up to 96 engagement points compared to 40 points in competitive hubs.

STRING

32/32 spokes with stainless steel bent 2.0 mm spokes with black anodizing and self-locking brass nipples.
The spokes are made of high-strength Swedish stainless steel Sandvik T302.

WEIGHT: 2,098 g

Product ID: 29154

Weight: 2100 g
